2007 Komori System 38

KOMORI SYSTEM 38

LR 538S - 625/16pp - 5 Unit

age 2007 (installed in 2009)

In excellent technical maintenance consists of 5 printing units, two folders, a RimaSystem dual system that includes a double delivery, a double trimming system for each delivery, a Rima RS36S stacker and a two MOSCA strappers.

general specifications:

Cut-off: 625mm

Maximum web width: 965 mm

Minimum web width: 425 mm

Maximum printable area: 965 x 617 mm

Non-printable area (gap): 8 mm

Plate format: 975 x 649 mm

Plate thickness: 0.3 mm

Plate cylinder depth: 0.381 mm

Blanket format: 980 x 682 mm

Blanket cylinder depth: 1,803 mm

Paper weight: 40...130 gsm - 1 web

Maximum speed: 50,000 cph (8.89 m/s)

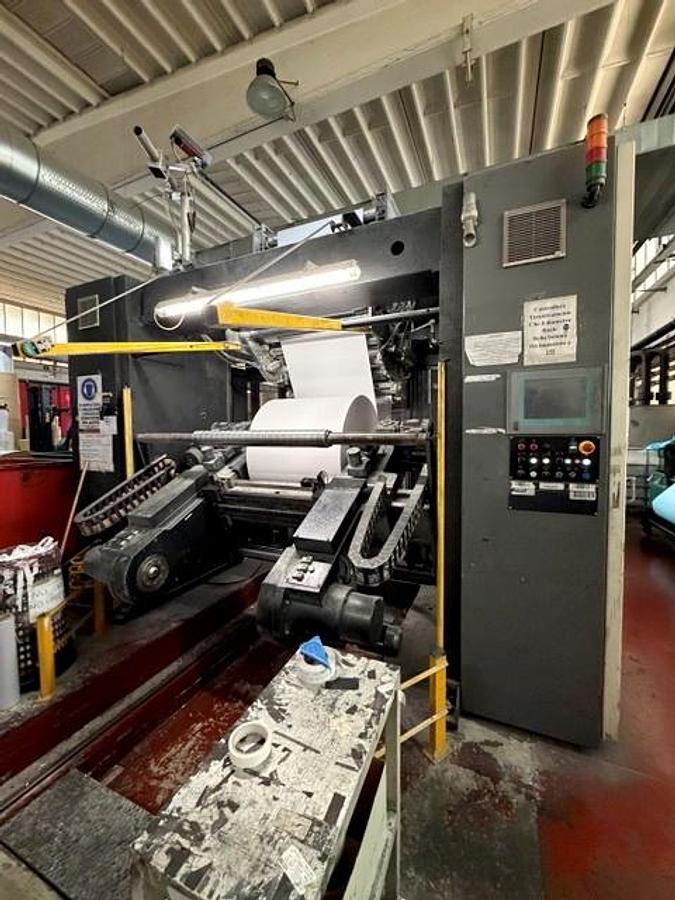

1 x MECTEC DLC 2100 series integrated infeed plate changer

complete with automatic web guide

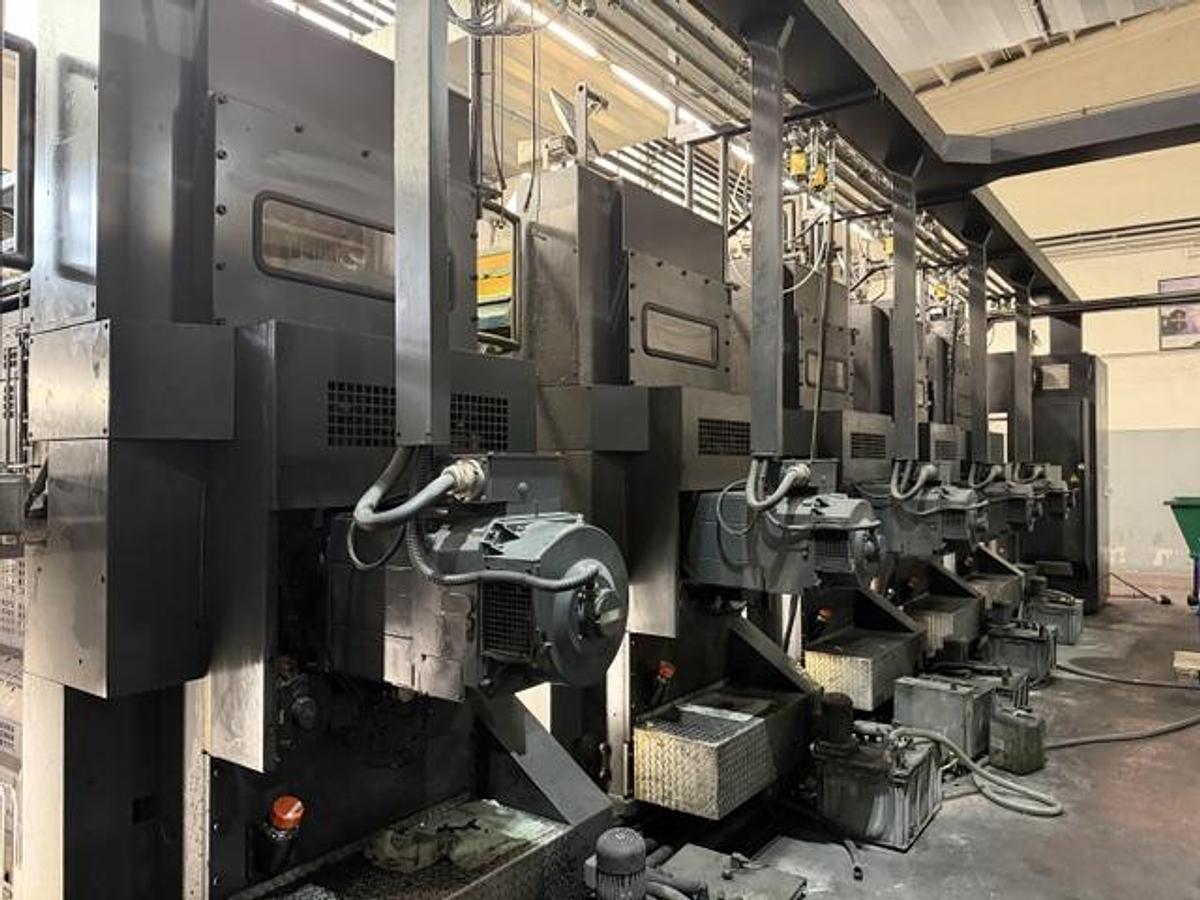

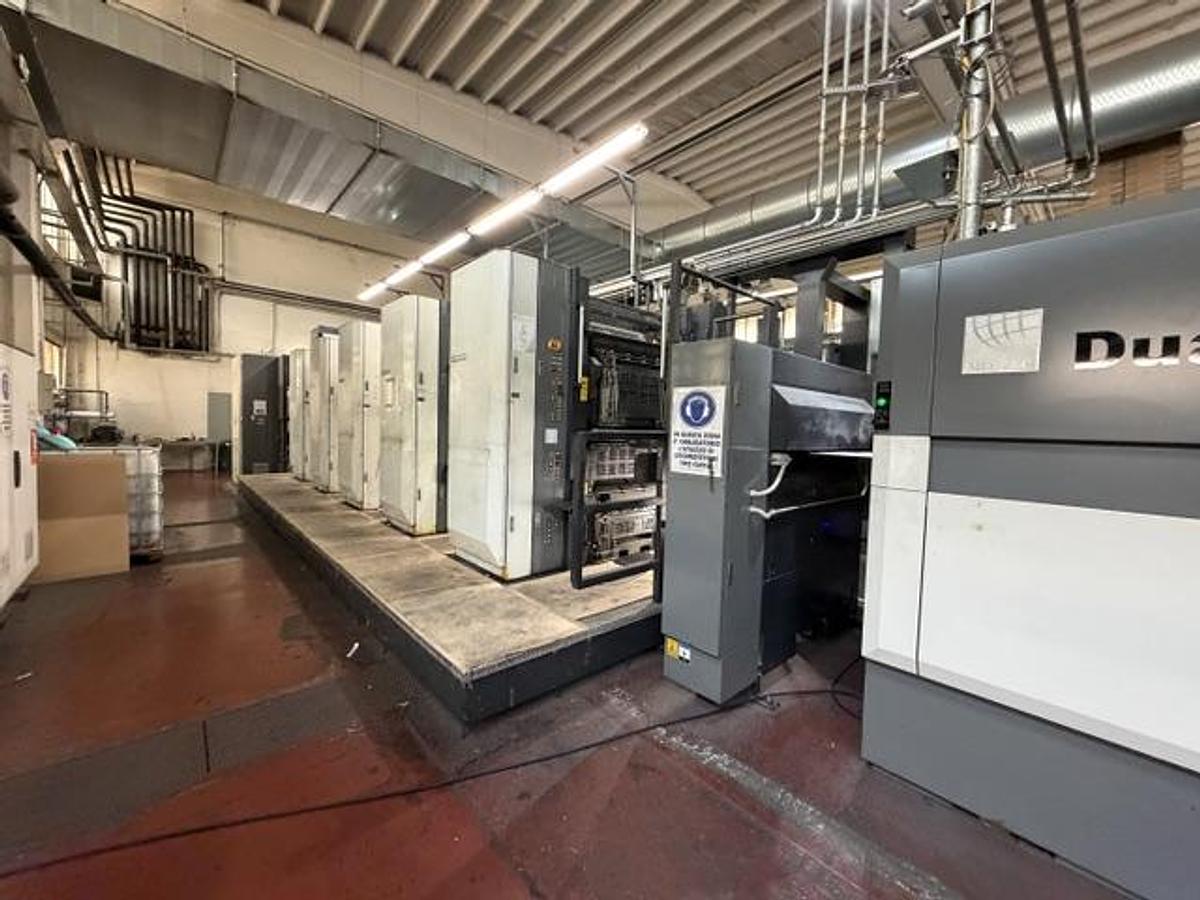

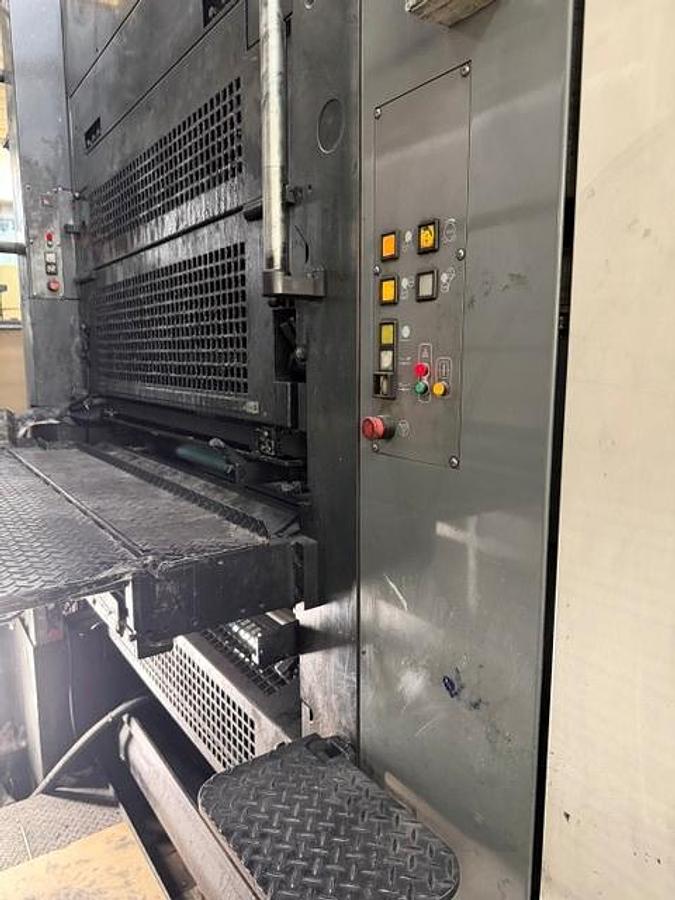

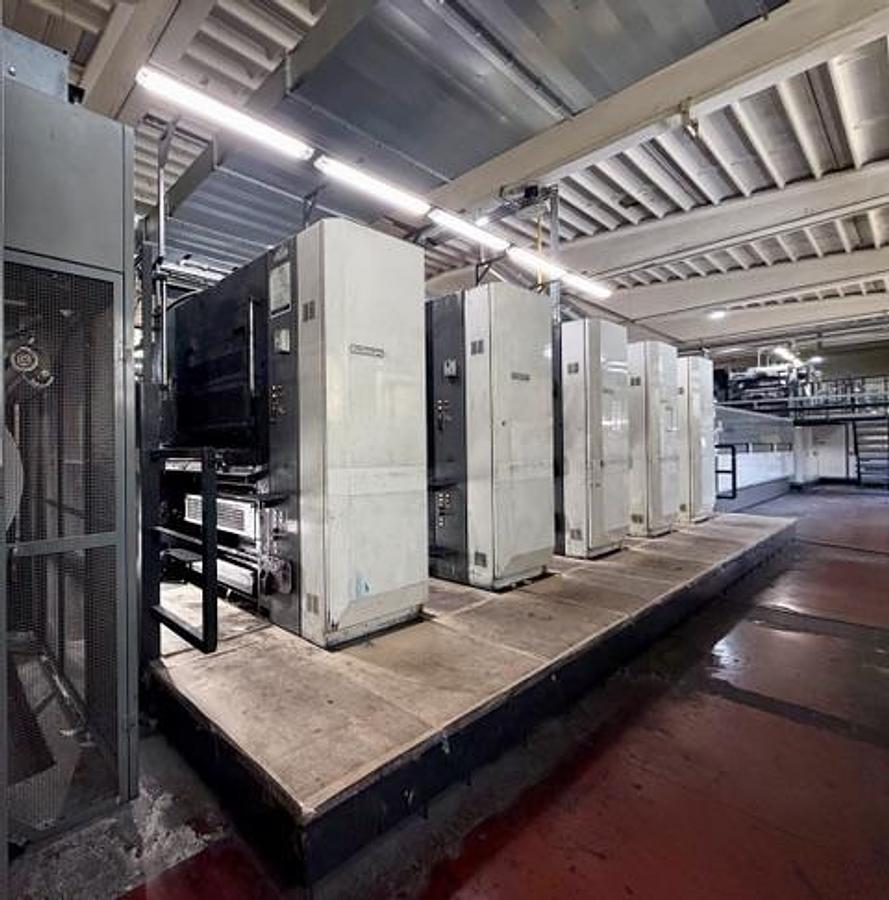

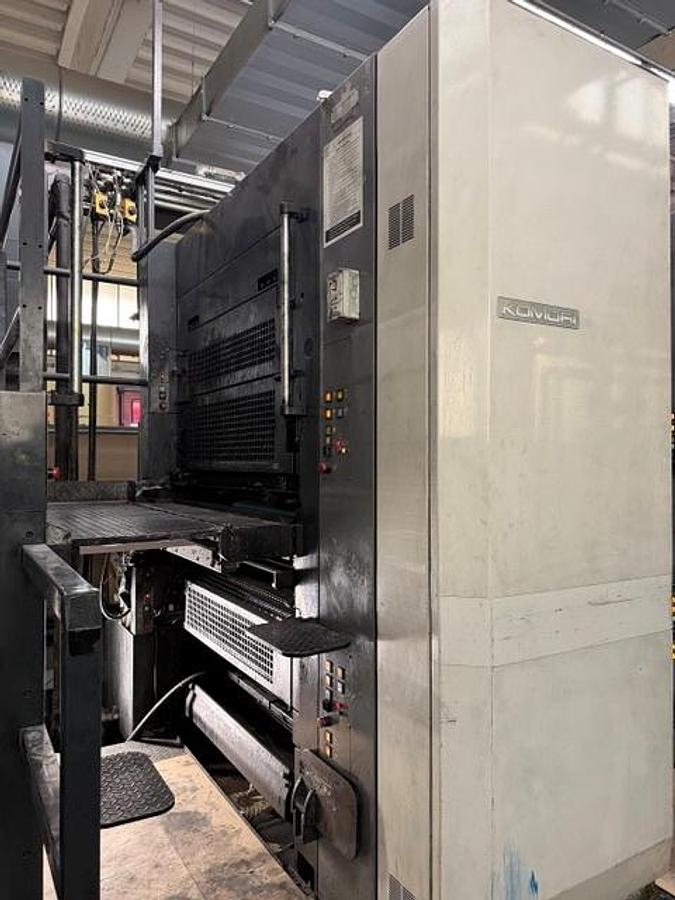

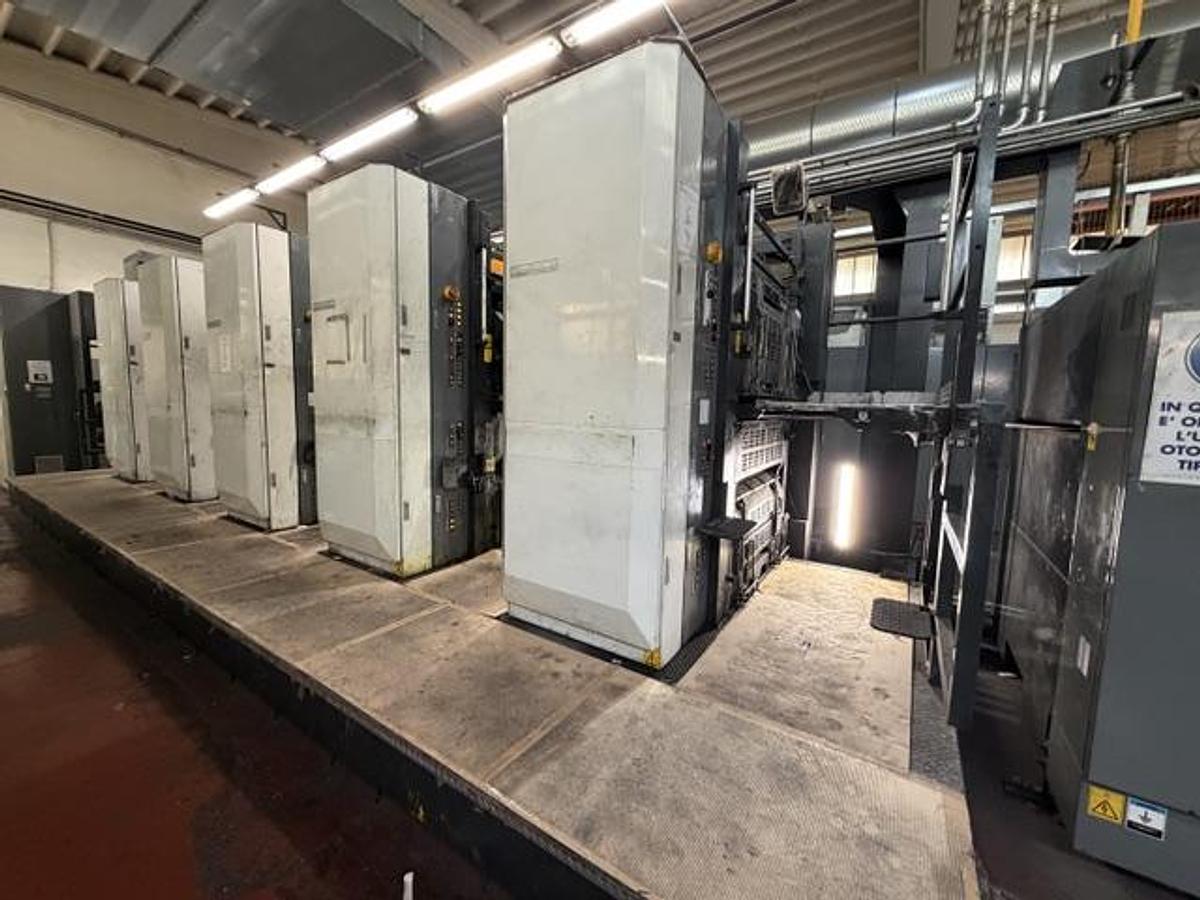

5 x KOMORI blanket/blanket printing units

APC fully automated plate changing system

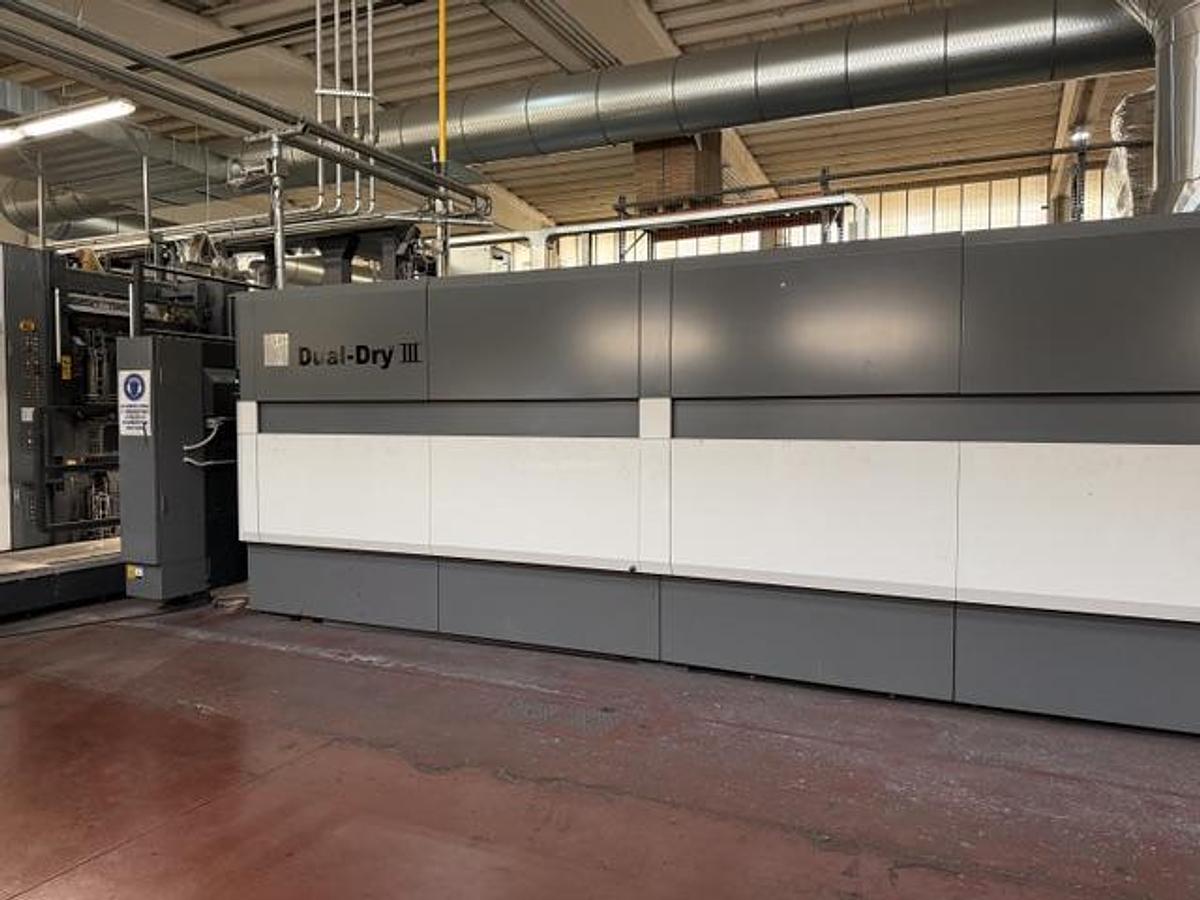

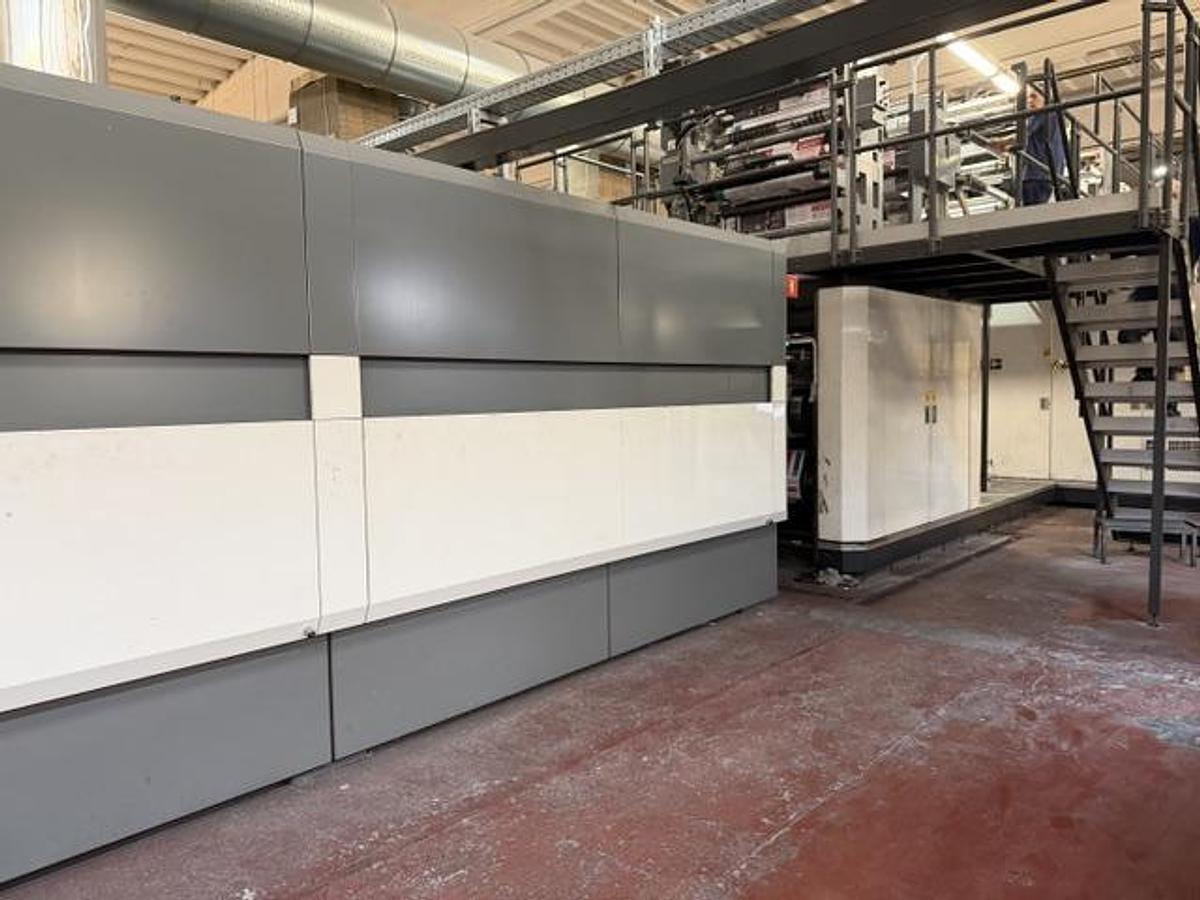

1 x MEGTEC DualDry III drying ovens, 10.8 meters long

(no integrated afterburner)

PROCEMEX - paper web break detection system

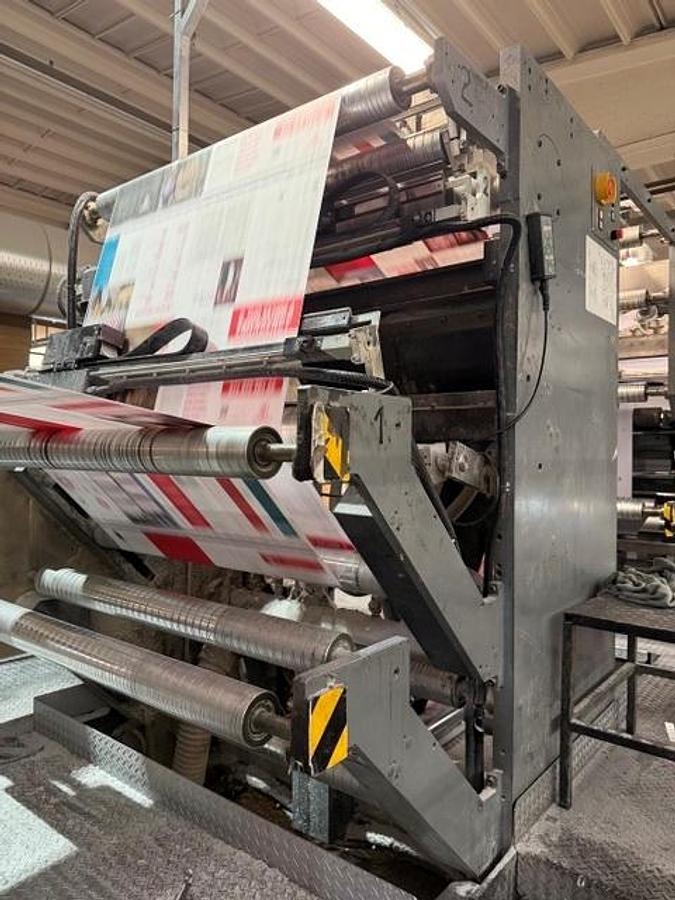

1 x set Komori 38S chill rolls, with 5 cylinders (5 x 400 mm)

complete with automatic side band guides

Komori WebCatcher

TECHNOTRANS refrigeration

1 x KOMORI type CF38 folding unit with automatic motorized fold change,

for the following folds: A4, A3, A5, & Delta

1 x ALF-CUT PINLESS module for 4pp & 8pp first fold

KOMORI AMR-W automatic start-up system

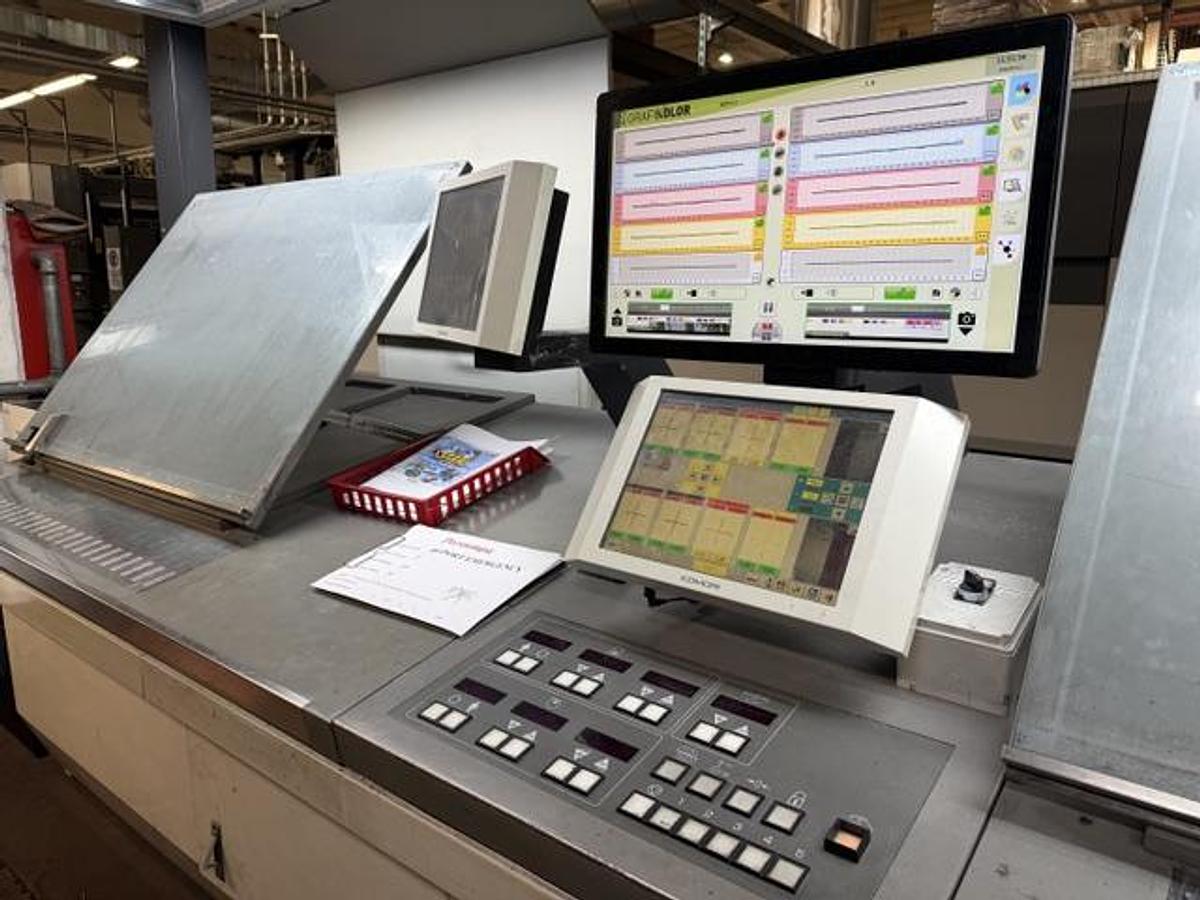

Rotary control console, with PQC quality control system

KOMORI KMS management system

Automatic blanket washing

KOMORI KHS AI high-production system

GRAFIKONTROL CR25 register control system

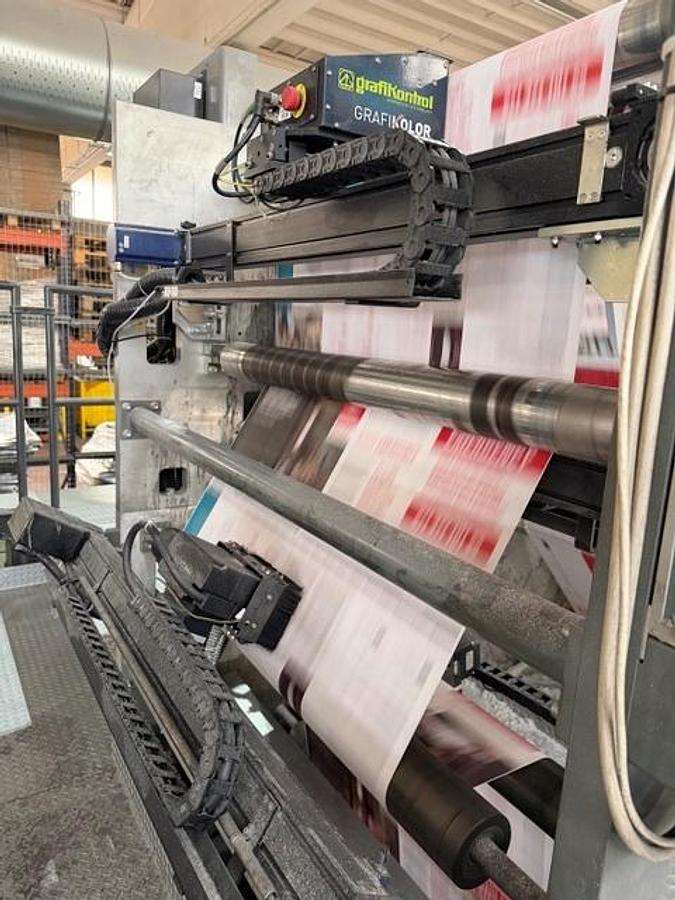

GRAFIKONTROL DENSIWEB color control system (with gray balance)

PLANATOL Combijet 8DT glue system

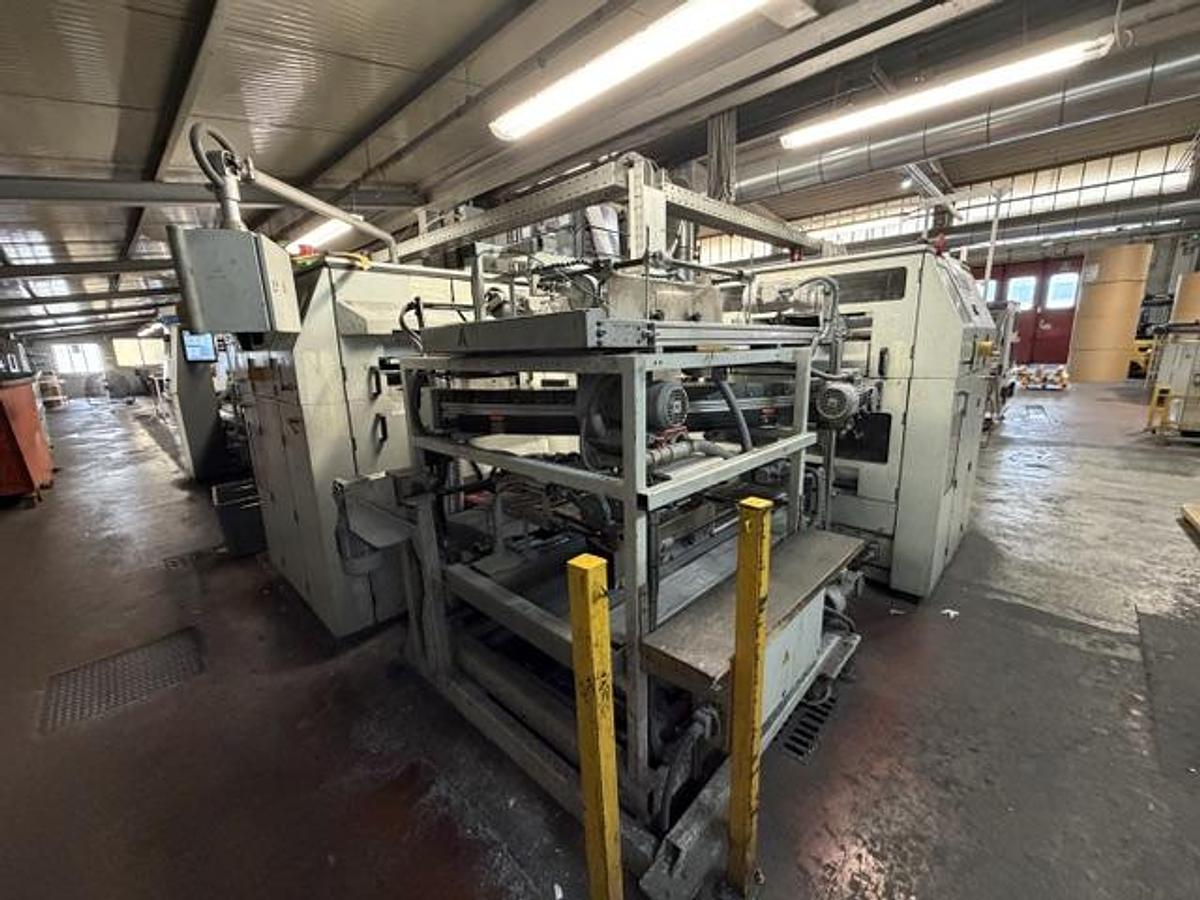

POST-PRESS

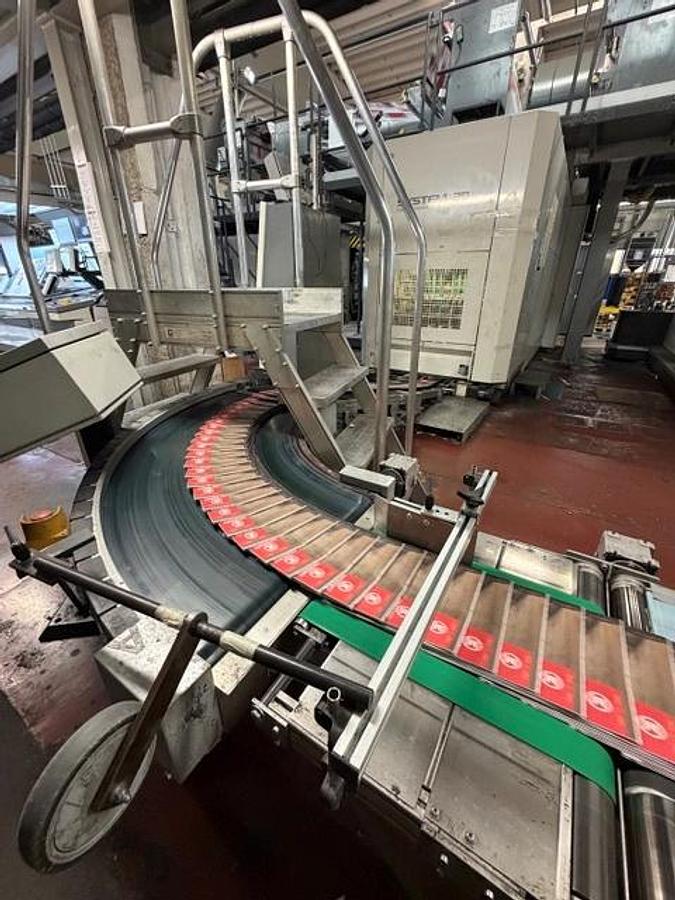

RIMA-SYSTEM Conveying System

RIMA-SYSTEM Double Trimmer RS 842

RIMA-SYSTEM Tower RS 230-020

RIMA-SYSTEM Double Trimmer RS 840

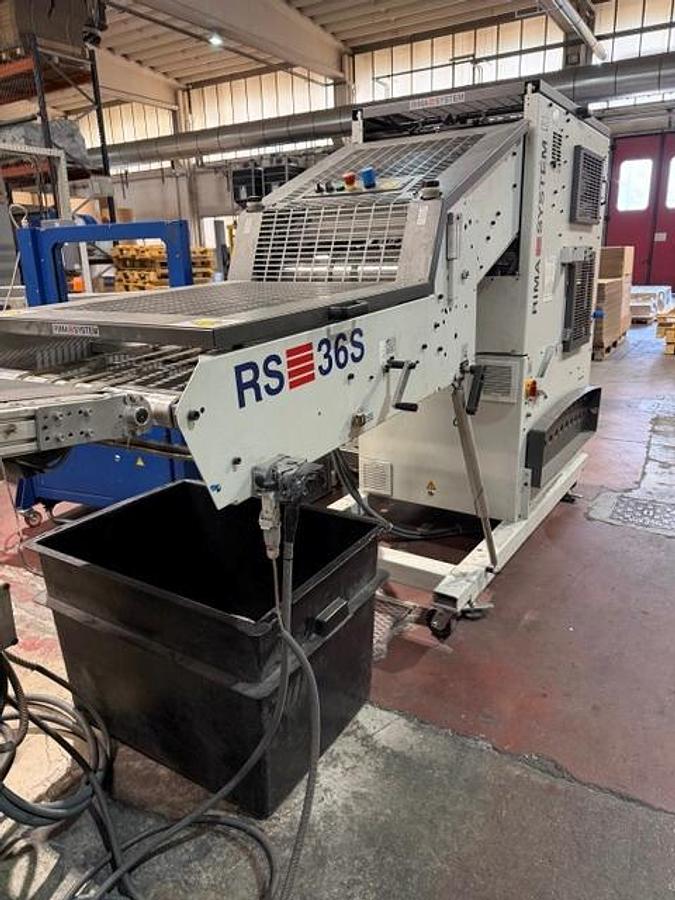

RIMA-SYSTEM Stacker RS 3610A

Press can be viewed in production until end of September 2026 and will become available in October 2026.
