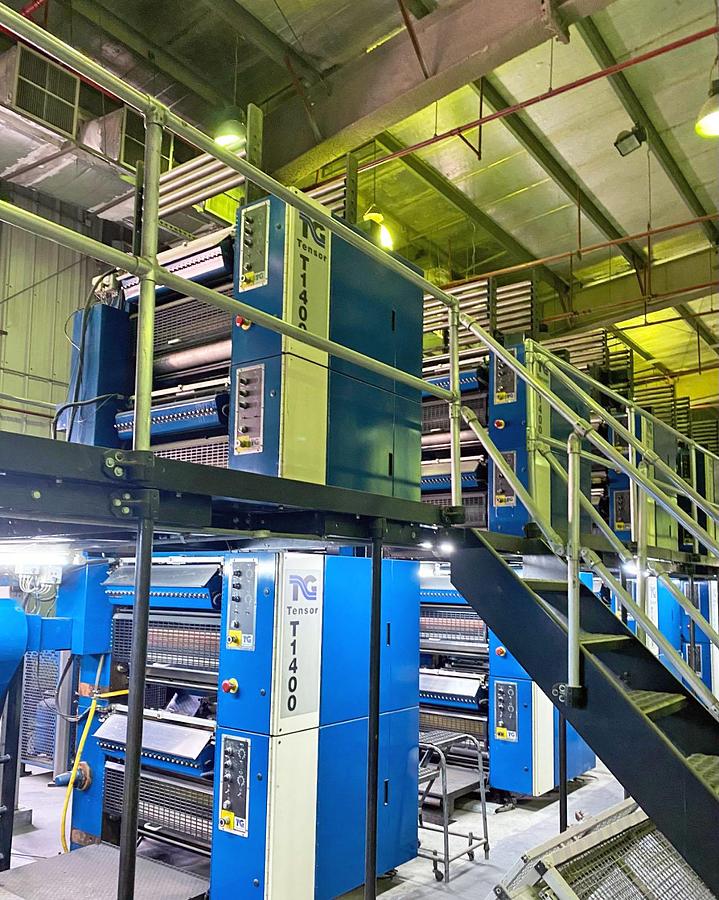

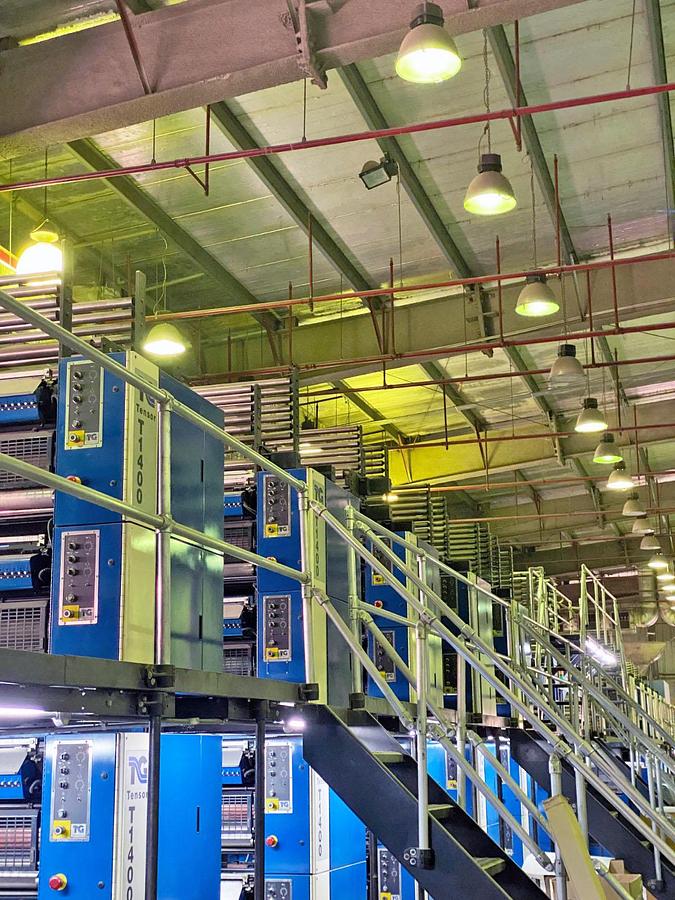

2006 Tensor T1400

Tensor T1400

Cut-Off: 578 mm (22-3/4”)

Maximum Web Width: 889 mm (35”)

Maximum Press Speed: 35,000 iph

Age: 2006

Very well maintained

Remote Inking

Brush Dampening

Motorized Register, 1 Web of Heatset

15 x Tensor T-1400 Series 4-High Towers

2 x Tensor H-50 Heavy-Duty Jaw Folder

Quarter-folder

16 Web capacity

1:2:2 Folder geometry

Reelstands

18 x MEGTEC 134050SE Zero Speed Automatic Splicers

Maximum Web Width: 40 inches

Operating Speed: 1300 fpm

Roll Diameter Capacity: 45 inches

Maximum Roll Weight Capacity: 2,500 lbs

SE Series Zero Speed Splicers

Megtec infeed with web guide

17 x Tensor compact infeeds

Twelve of the Towers are driven by a mechanical shaft

Three of the Towers are driven by a unit shaftless drive system.

3 x operating consoles

Baldwin dampening systems

4 x Baldwin Basic Liner 10.0

4 x Baldwin model 226D

EPG computer ink key control system

Bay Window

Coanda Plus 195 (5.0m) Web Drying System with 4-12” roll chill stands

Chill Roll Stands

WPC silicone applicator and E & L web guide mounted on the chill

Betz Ink Supply System
