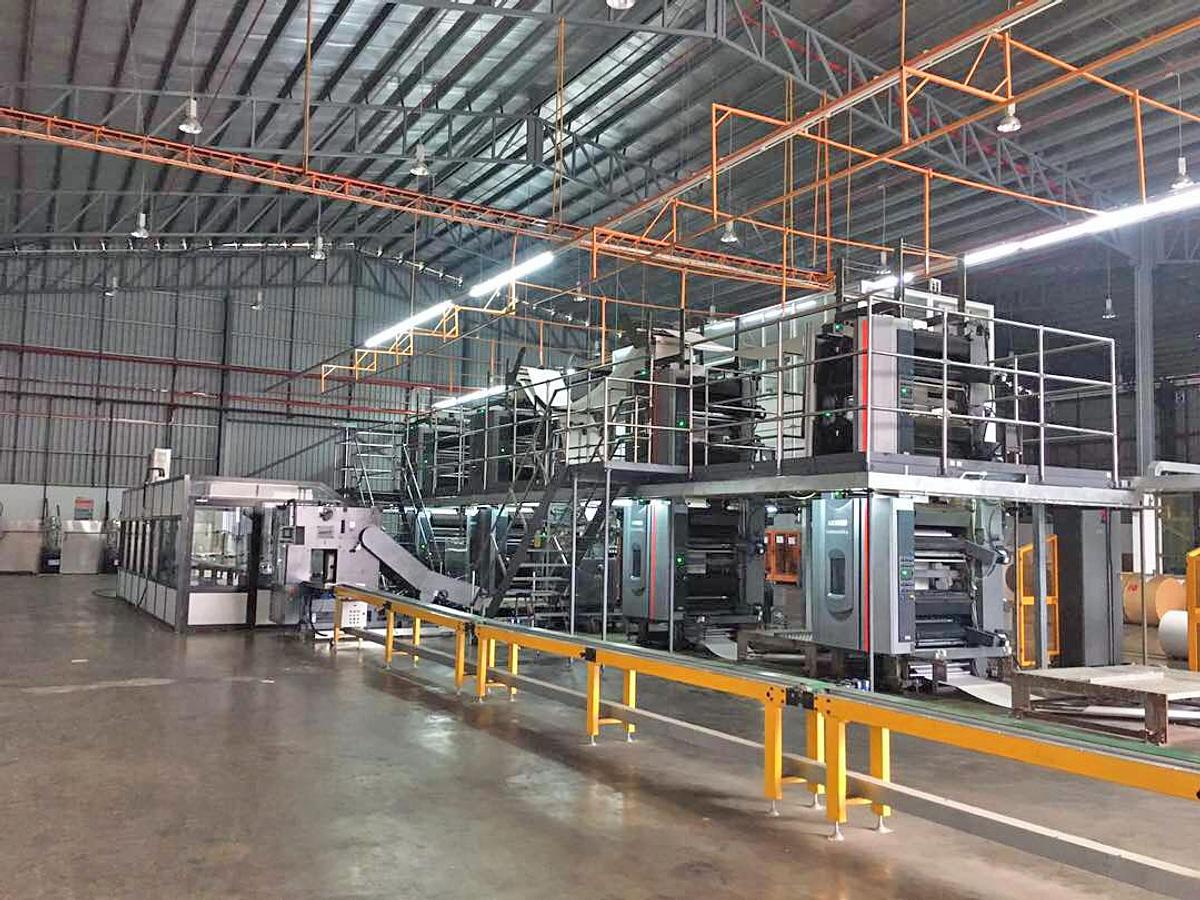

2014 Goss Community SSC

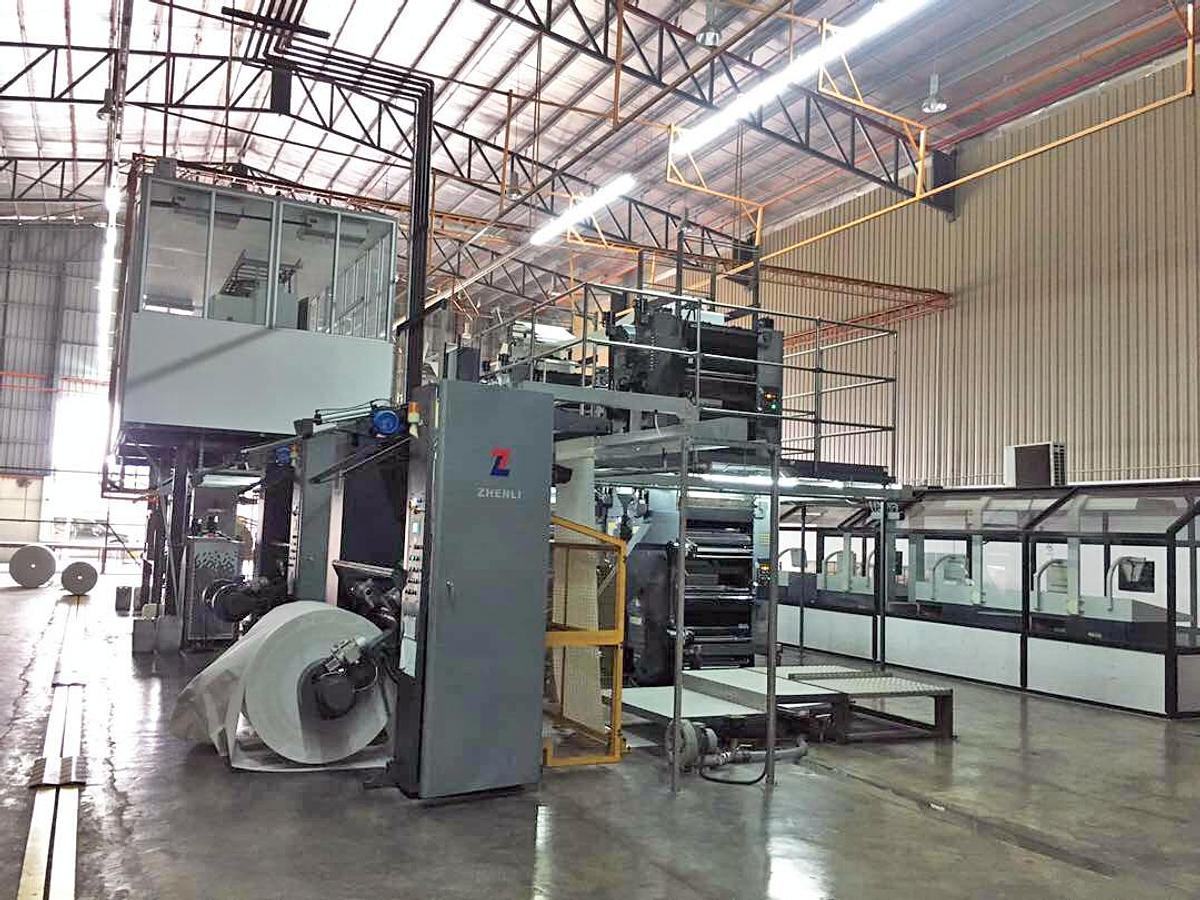

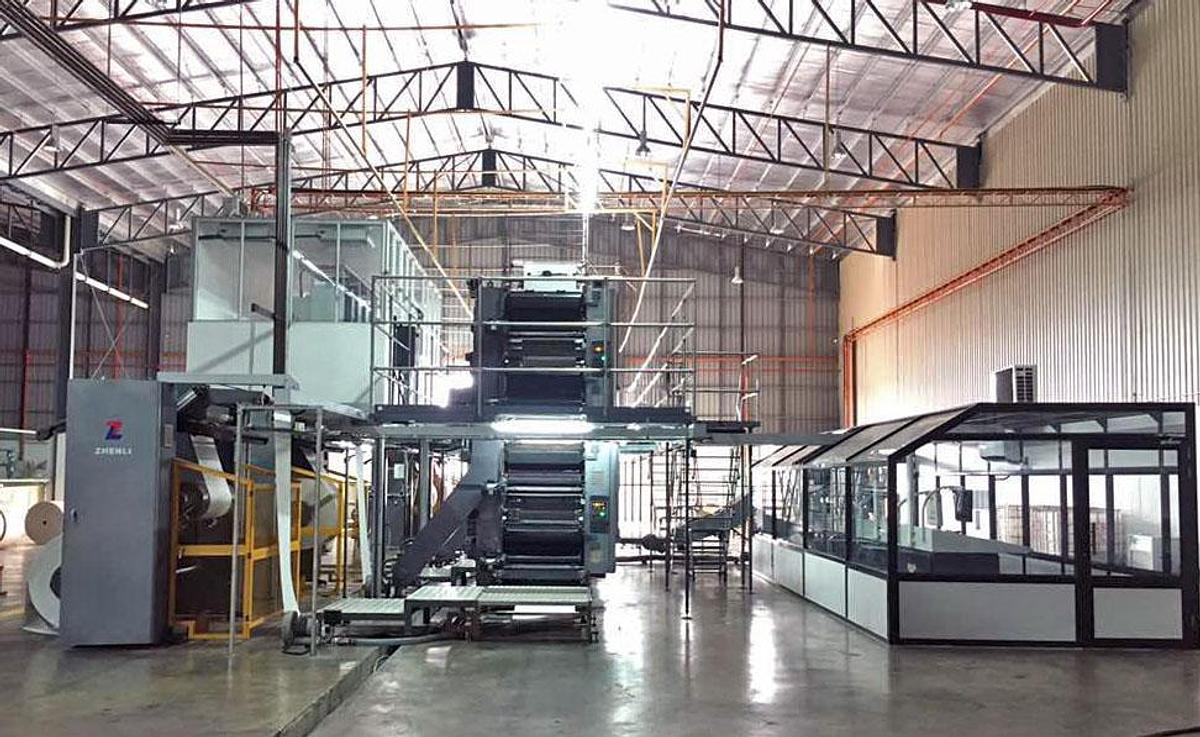

(2014) Goss Community SSC newspaper press

Cut-off: 578mm / 22.85"

Web-width: 889mm

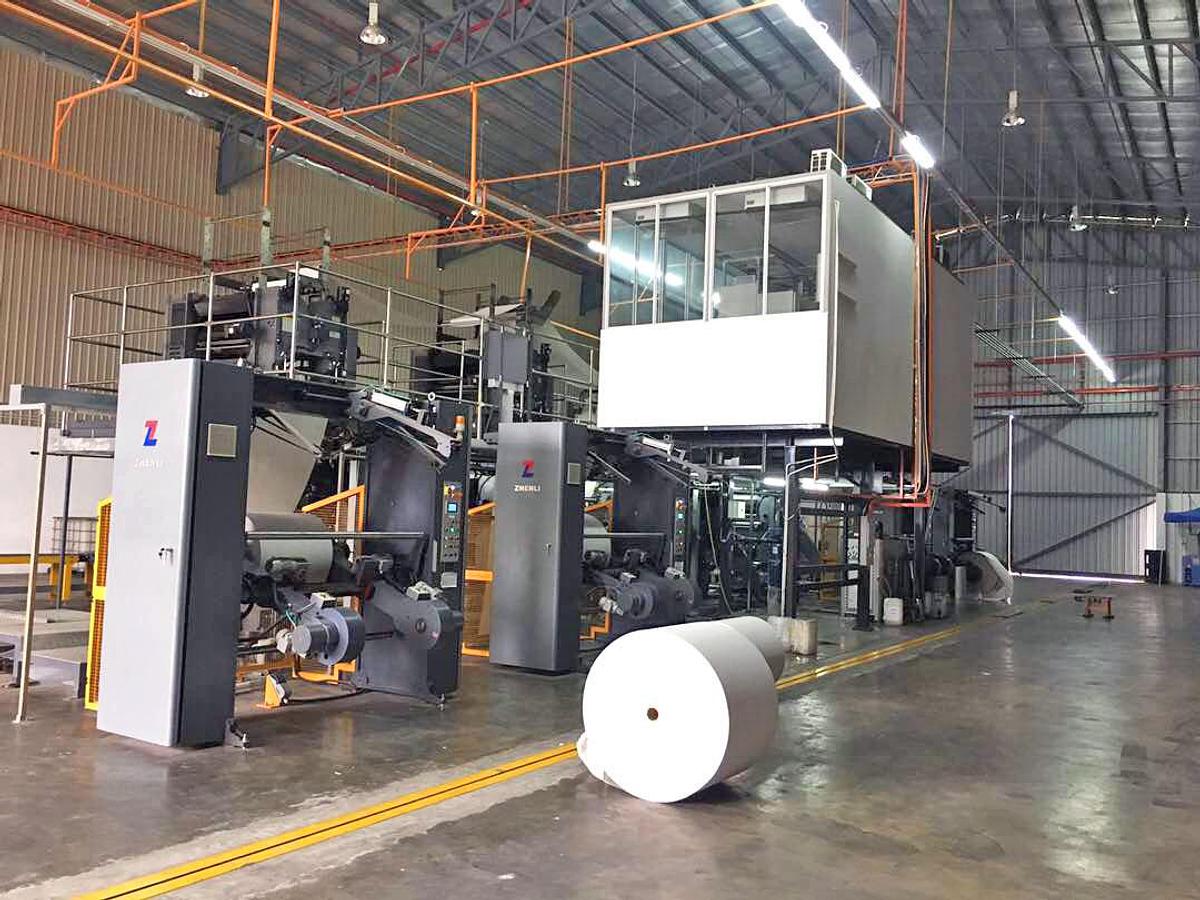

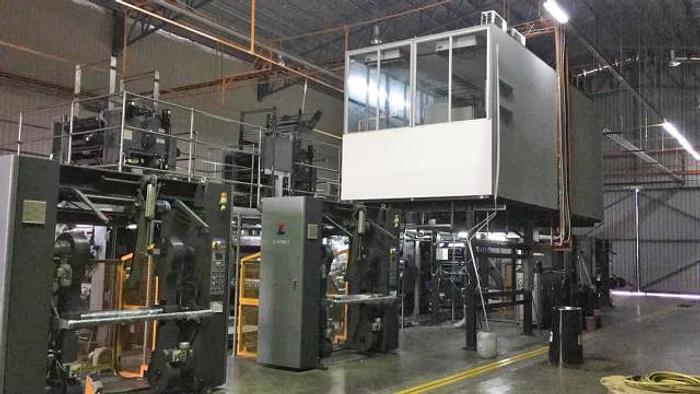

4 x Zhenli TJ1020 Automatic Flying Pasters

Max. Running and Splicing Speed: 780 mpm

Max. Roll Diameter: 50 inch (1270 mm)

Max. Web Width: 1020mm

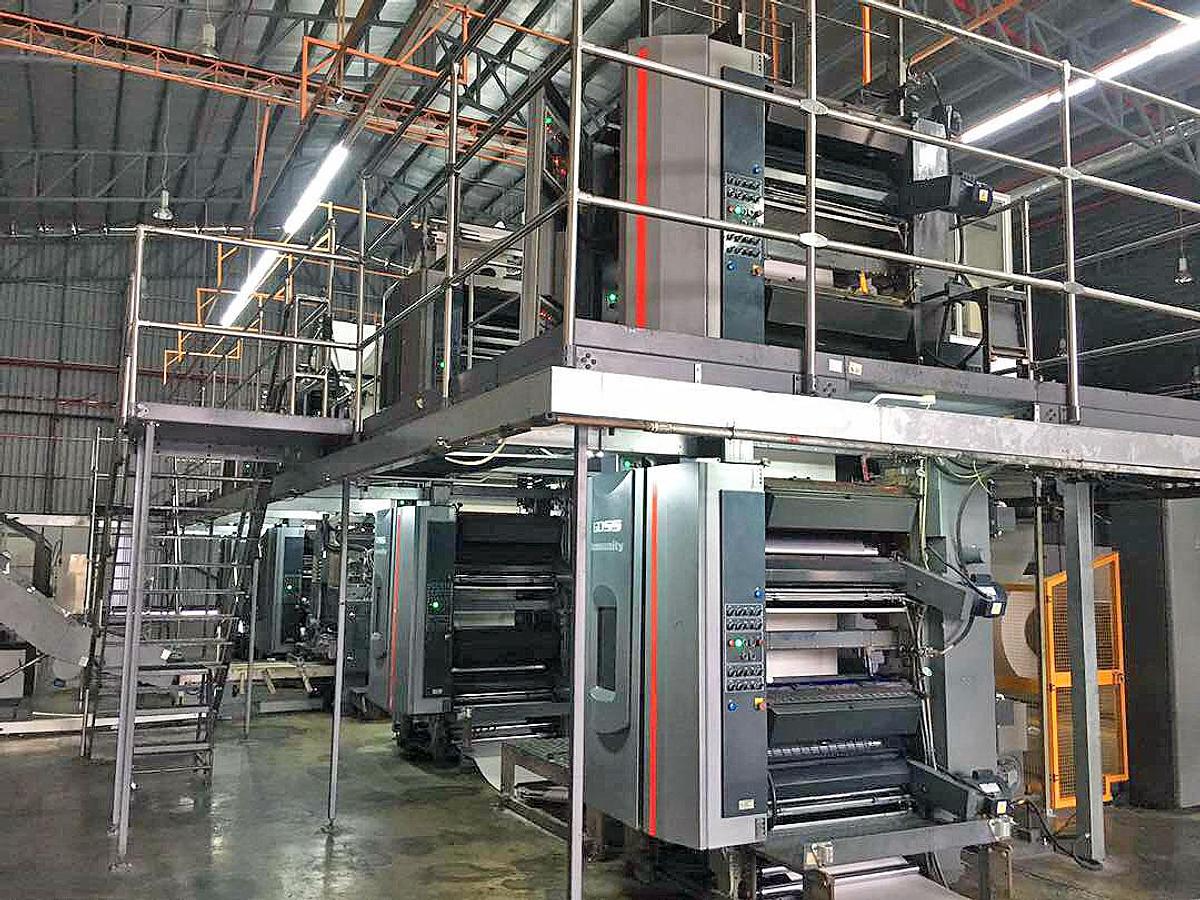

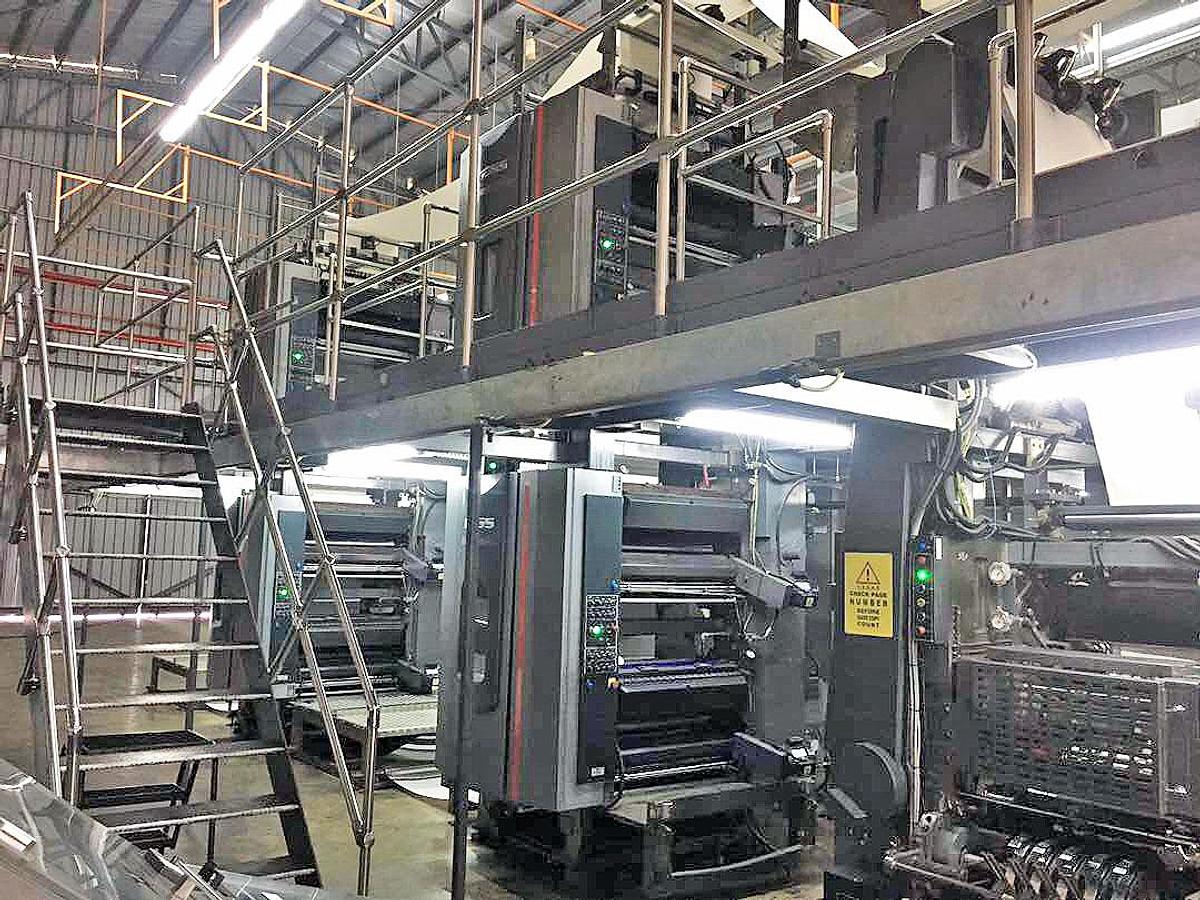

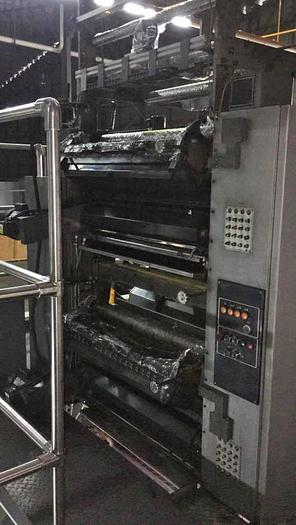

4 x Goss SSC 4-hi towers, with:

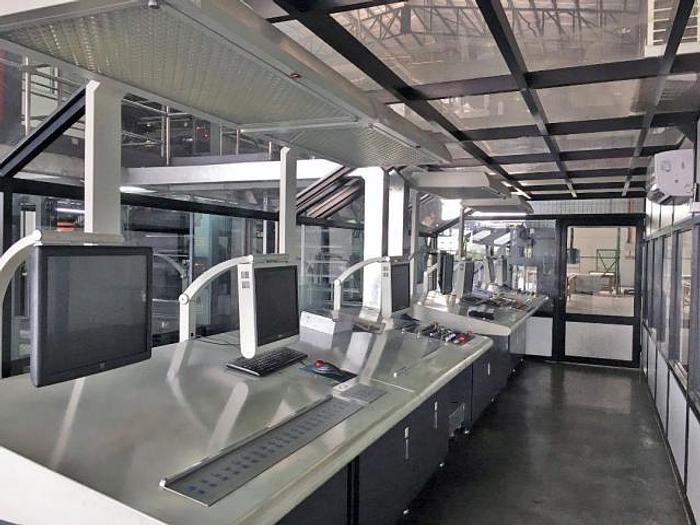

QTI Quadtech Auto Registration and Cut-Off System

HuaGuang/Goss Ink Preset System

Variable speed Ink Fountain Motor

Motorised ink key control

Variable speed Dampener Fountain Motor

Baldwin Spiral Brush Dampening System

Bearer-to-bearer blanket cylinders

Slot lock-up system

Motorised registration from console

Pneumatic throw off for ink, dampening and impression

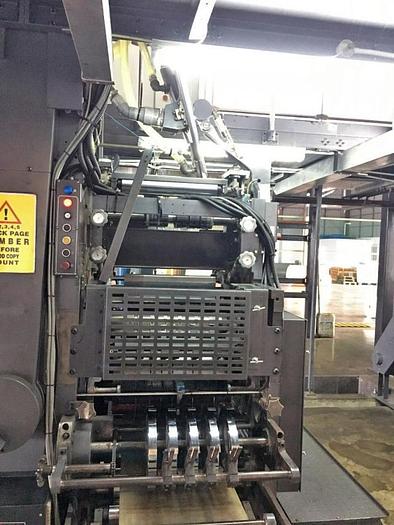

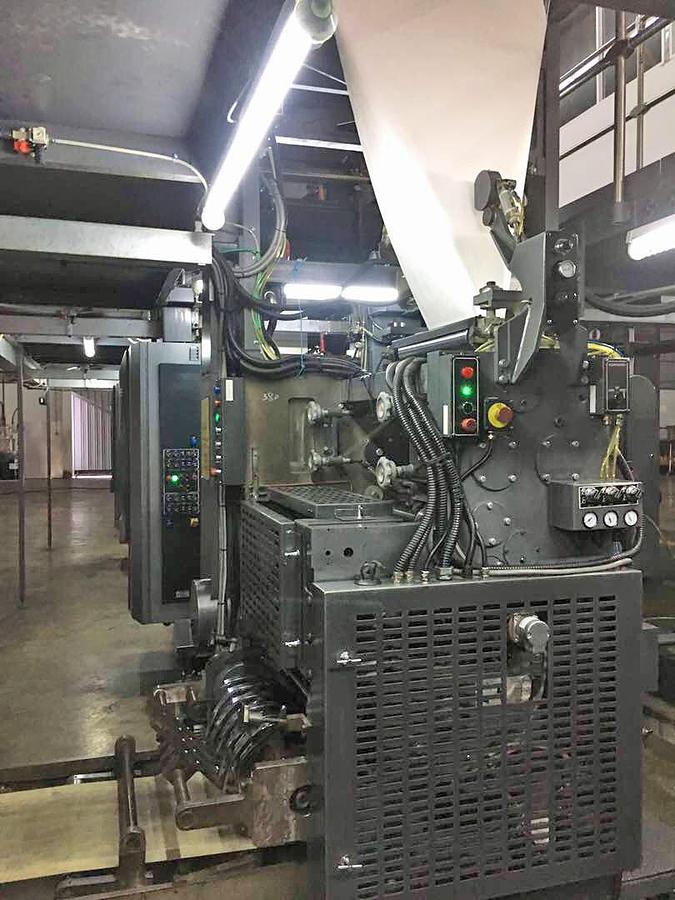

1 x Magnum N40 folder (b/s and tabloid only)

Please note: no quarter fold

Electrical Power: 3 Phase, 415 V

Drive: Parker AC690 Digital Drive Shaftless System

Motor: Five (5) AC Drive motor

Baldwin Dampener Circulation System with Chill Water

Additional: 1 x Zhenli JD-450(H) Stacker
